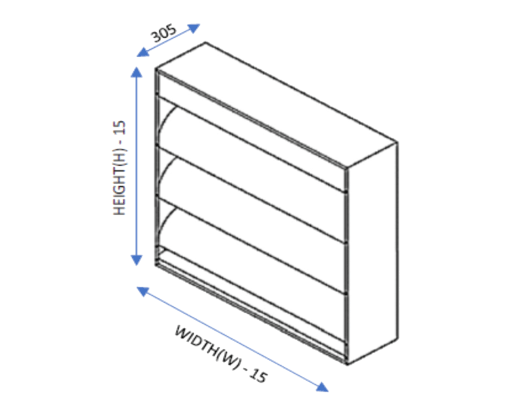

MODEL – ACL-200 S/A

Acoustic Louvers are used as part of the intake/exhaust air system of buildings, structures, or equipment to help reduce noise produced by the system equipment or to reduce the outside noise to come in, along with intake air. Caryaire Acoustic louvers, ACL200S are made of steel/Aluminum Caryaire Acoustic louvers utilize an acoustical grade fibrous media to limit noise. The entire assembly is powder coated for durability and aesthetics.

Technical Data

Min size: 550W x 550H
Max single module size: 1200W x 2000H
Insertion Loss: 7.5 dBA
Free Area: 29%
Frame MOC: 20GA Galv. Steel/Aluminum
Louver Blade MOC: 22GA Galv. Steel/Aluminum
Perforated sheet: 22GA Galv. Steel/Aluminum
Sound absorbent material: Acoustical grade fibrous media
