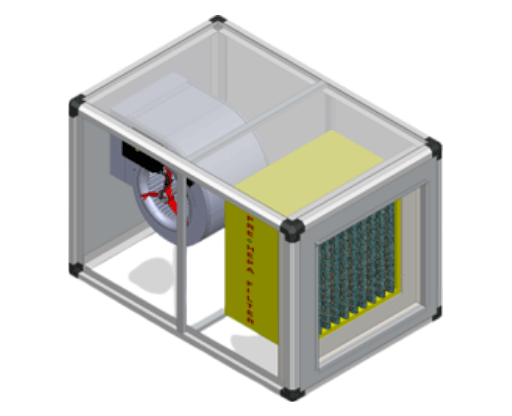

Direct Drive DIDW Cabinet Inline Fan

Double Skin-CDK-FIL Series

• Designed for Ventilation applications such as bathrooms, storage rooms, meeting rooms, or offices.
• Double Skin- 0.6mm inner GSS and 0.6mm outer pre coated GSS, 25mm thick panel, PUF density 40kg/m^3
• DDMP-Compact Forward Curved Fan with Single phase DC Brushless motor.
• Complete with Inlet and outlet flange as standard for duct connection. Combination of Hepa Filter & Pre- Filter fixing arrangement is a standard feature in all models.
• Motor and controller are available in 1KW & 2 KW as an option in DDMP-9/9 & 10/10 models.
• Initial pressure drops -35mm
