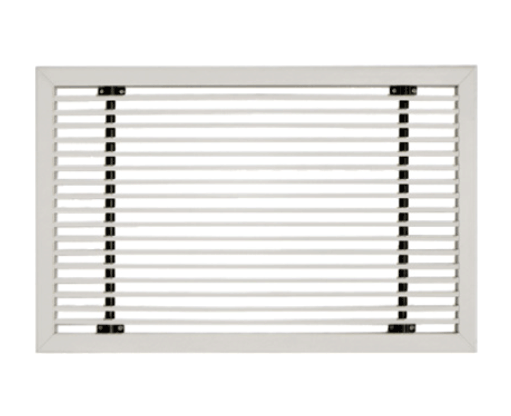

Caryaire Fixed Bar Grills are ideal for Supply as well as Return air, in both Cooling as well as Heating. It can be used in high side wall or ceiling applications. Available in 19 different cores with a choice of frames. Optional Opposed Blade Damper can be supplied in Aluminium or Steel construction. Ideal for Continuous lengths with maximum singe piece not exceeding 1800mm. Lengths greater than 1800mm are furnished in multiple sections which can be field aligned using the optional alignment strips. All Deflection bars are fixed and are parallel to the Long Dimension. Bars, Frames and Spacer are all Extruded Aluminium Side Wall or Ceiling Application

• Supply or Return
• 0, 15 and 30 Degree Deflections in Multiple Blade Styles
• Spacings Available in 13 and 17mm
• Standard and Broad Frame Available
• Concealed Fixing
• Maximum Single Grill Section of 1800mm Long
• Ideal for Long Continuous Lengths, Field Aligned

Available Models
– G0133 – 3mm Louver, 13mm spacing, Zero Degree Deflection.
– G1133 – 3mm Louver, 13mm spacing, Fifteen Degree Deflection.
– G2133 – 3mm Louver, 13mm spacing, Fifteen Degree Deflection – 2 way
– G0134 – 4mm Louver, 13mm spacing, Zero Degree Deflection.
– G1134 – 4mm Louver, 13mm spacing, Fifteen Degree Deflection.

– G2134 – 4mm Louver, 13mm spacing, Fifteen Degree Deflection – 2 way
– G0174 – 4mm Louver, 17mm spacing, Zero Degree Deflection.
– G1174 – 4mm Louver, 17mm spacing, Fifteen Degree Deflection.
– G2174 – 4mm Louver, 17mm spacing, Fifteen Degree Deflection – 2 way
– G0135 – 5mm Louver, 13mm spacing, Zero Degree Deflection.
– G1135 – 5mm Louver, 13mm spacing, Fifteen Degree Deflection
– G2135 – 5mm Louver, 13mm spacing, Fifteen Degree Deflection – 2 way
– G3135 – 5mm Louver, 13mm spacing, Thirty Degree Deflection
– G4135 – 5mm Louver, 13mm spacing, Thirty Degree Deflection – 2 way
– G0175 – 5mm Louver, 17mm spacing, Zero Degree Deflection.
– G1175 – 5mm Louver, 17mm spacing, Fifteen Degree Deflection.
– G2175 – 5mm Louver, 17mm spacing, Fifteen Degree Deflection – 2 way
– G3175 – 5mm Louver, 17mm spacing, Thirty Degree Deflection.
– G4175 – 5mm Louver, 17mm spacing, Thirty Degree Deflection – 2 way
