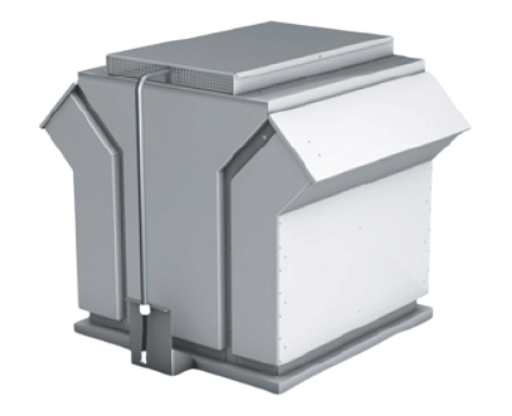

The genovent is a smoke extraction solution that offers a whole host of technical advantages over the competition along with maximum safety and incredible value for money:

• Both ranges have CE certification
• During smoke extraction, the RDM 56 conveys media up to a maximum of 400 °C for 120 min. and the RDM 57 up to a maximum of 600 °C for 120 min.
• The attractively designed, self-enclosed casing made of non-corrosive aluminium is a striking addition to any roof
• The powerful add-on motors are separated from the airflow and cooled by the outside air
• The blades on the back of the impellers also support the motor cooling
• The outlet flap which comes as standard stops rain and snow from getting in and prevents heat loss. This protection from freezing means the fan can be mounted anywhere, even above unheated rooms. Normal fans without outlet flaps can only be fitted above heated rooms
• The smoke extract fans RDM are designed to respond to the snow load class requirements SL 1000 according to DIN EN 1201-3
• Easily removable side pieces on the casing, the swing-out middle section and an easy-access base plate guarantee safe and easy installation, inspection and maintenance
• A wide range of accessories and a specially designed system of electrical components round off the whole system.
